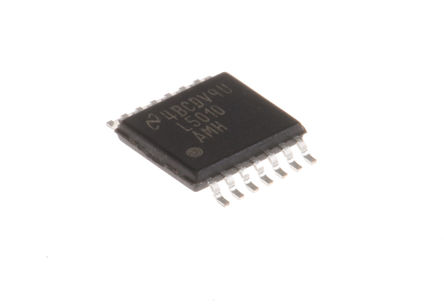

Image is for your reference only,please check specifications for details

LM5010AMH - TI
Manufacturer:
TI
ManyChip's Part#:
MC83515533
Category:
DC to DC Converter
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14Pin HTSSOP EP Rail
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM5010AMH is a 1A Non-synchronous Constant On-time Buck Regulator with the input operating range extended to 6V minimum. The LM5010A features all the functions needed to implement an efficient, buck regulator capable of supplying in excess of 1A load current. This high voltage regulator integrates an N-channel buck switch. The constant on-time regulation scheme requires no loop compensation resulting in fast load transient response and simplified circuit implementation. The operating frequency remains constant with line and load variations due to the inverse relationship between the input voltage and the on-time. The valley current limit detection is set at 1.25A. Additional features include VCC under-voltage lock-out, thermal shutdown, gate drive under-voltage lock-out and maximum duty cycle limiter.
Integrated 80V N-channel buck switch
Integrated high voltage bias regulator
No loop compensation required
Ultra-fast transient response
Nearly constant operating frequency with line and load variations
Adjustable output voltage
±2% Feedback reference
Programmable soft-start
Thermal shutdown
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

LM5010AMH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Frequency	1.00 MHz
Number of Outputs	1 Output
Output Voltage	2.5V ~ 70V
Output Current	1 A
Number of Positions	14 Position
Switching Frequency	1 MHz
Topology	Buck
Input Voltage (Max)	75 V
Input Voltage (Min)	6 V
Output Voltage (Max)	70 V
Output Voltage (Min)	2.5 V
Output Current (Max)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	0.9 mm
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
