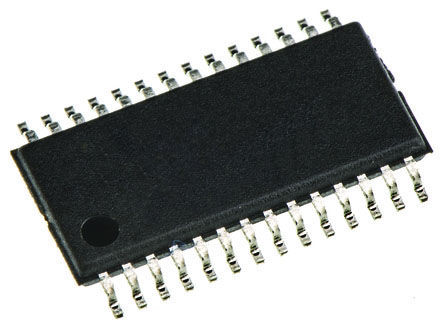

Image is for your reference only,please check specifications for details
- LM5175PWPT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC11390665
-
Category:DC to DC Converter
-
Package:HTSSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:DC-DC Controller, Current Mode, 3.5V to 42V, 1 Output, Synchronous Buck-Boost, 500kHz, HTSSOP-28
-
Stock Locations:
-
Availability:1,170 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.22
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LM5175PWPT is a synchronous four-switch Buck-Boost DC/DC Controller, capable of regulating the output voltage at, above or below input voltage. It operates over a wide input voltage range of 3.5 to 42V (60V maximum) to support a variety of applications. It employs current-mode control both in buck and boost modes of operation for superior load and line regulation. The switching frequency is programmed by an external resistor and can be synchronized to an external clock signal. The device also features a programmable soft-start function and offers protection features including cycle-by-cycle current limiting, input under-voltage lockout (UVLO), output overvoltage protection (OVP) and thermal shutdown. In addition, it features selectable Continuous Conduction Mode (CCM) or Discontinuous Conduction Mode (DCM) operation, optional average input or output current limiting, optional spread spectrum to reduce peak EMI and optional hiccup mode protection in sustained overload conditions.
- Single inductor buck-boost controller for step-up/step-down DC/DC conversion
- 3.5 to 42V, 60V Maximum wide VIN range
- 0.8 to 55V Flexible VOUT range
- VOUT short protection
- High efficiency buck-boost transition
- Adjustable switching frequency
- Optional frequency sync and dithering
- Integrated 2A MOSFET gate drivers
- Cycle-by-cycle current limit and optional hiccup
- Optional input or output average current limiting
- Programmable input UVLO and soft-start
- Power good and output overvoltage protection
- Selectable CCM or DCM with pulse skipping
- Green product and no Sb/Br
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
LM5175PWPT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | HTSSOP-28 |
| Supply Voltage (DC) | 3.50V (min) |
| Number of Outputs | 1 Output |
| Output Voltage | 0.8V ~ 55V |
| Output Current | 1.8 A |
| Number of Positions | 28 Position |
| Quiescent Current | 1.65 mA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 500 kHz |
| Duty Cycle | 50 % |
| Input Voltage (Max) | 42 V |
| Input Voltage (Min) | 3.5 V |
| Output Voltage (Max) | 55 V |
| Output Voltage (Min) | 0.8 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 42 V |
| Supply Voltage (Min) | 3.5 V |
| Input Voltage | 3.5V ~ 42V |
| Show | |
| Size-Length | 9.8 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
