Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

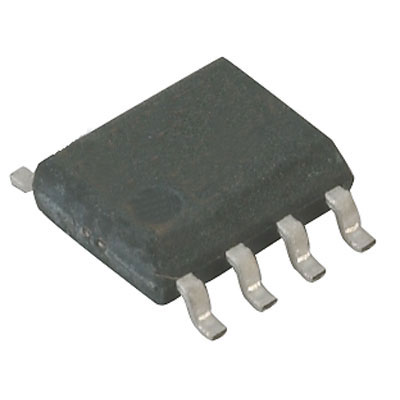

Case/Package | SOIC-8 |
Supply Voltage (DC) | 5.00 V |
Output Current | ≤30 mA |
Supply Current | 1.3 mA |
Number of Circuits | 2 Circuit |
Number of Channels | 2 Channel |
Number of Positions | 8 Position |
Common Mode Rejection Ratio | 70 dB |
Input Offset Drift | 1.00 µV/K |
Bandwidth | 1.5 MHz |
Slew Rate | 1.30 V/μs |
Gain Bandwidth Product | 1.5 MHz |
Input Offset Voltage | 110 µV |
Input Bias Current | 0.02 pA |
Operating Temperature (Max) | 85 ℃ |
Operating Temperature (Min) | -40 ℃ |
Gain Bandwidth | 1.5 MHz |
Minimum CMRR Range | 70 dB |
Supply Voltage | 3V ~ 15.5V |
Supply Voltage (Max) | 15.5 V |
Supply Voltage (Min) | 3 V |
Show | |
Size-Length | 4.9 mm |
Size-Width | 3.9 mm |
Size-Height | 1.45 mm |
Operating Temperature | -40℃ ~ 85℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | Non-Compliant |
Lead-Free Status | Contains Lead |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
