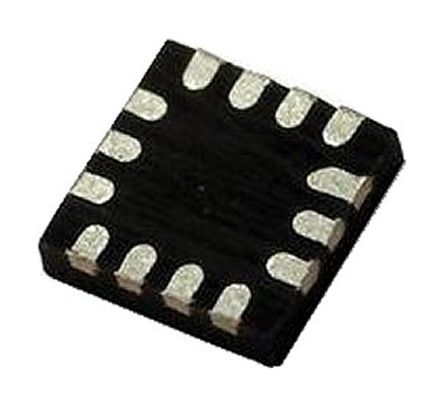

Image is for your reference only,please check specifications for details

LMH5401IRMST - TI
Manufacturer:
TI
ManyChip's Part#:
MC1646664
Category:
Amplifier, Buffer IC
Package:
UQFN-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMH5401IRMST Differential Amplifier, Low Power, 1 Amplifiers, 6.2GHz, -40℃, 85℃
Stock Locations:
Availability:
218 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.36

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMH5401IRMST is a very high-performance Differential Amplifier optimized for intermediate frequency (IF) or high-speed, DC-coupled, time-domain applications. The device is ideal for DC- or AC-coupled applications that may require a single-ended-to-differential (SE-DE) conversion when driving an analog-to-digital converter (ADC). The LMH5401 generates very low levels of second- and third-order distortion when operating in SE-DE or differential-to-differential (DE-DE) mode. The amplifier is optimized for use in both SE-DE and DE-DE systems. The device has unprecedented usable bandwidth from DC to 2GHz. The LMH5401 can be used for SE-DE conversions in the signal chain without external baluns in a wide range of applications such as broadband communications and high-speed data acquisition. A common-mode reference input pin is provided to align the amplifier output common-mode with the ADC input requirements.
Supports single- and dual-supply operation
Power-down
55mA Power consumption
Excellent linearity performance - DC to 2GHz, G=12dB
1.25nV/√Hz Input voltage noise
3.5pA/√Hz Input current noise
Green product and no Sb/Br

Show

LMH5401IRMST Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	UQFN-14
Supply Current	55 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	72 dB
Bandwidth	6.2 GHz
Slew Rate	17.5 kV/μs
Gain Bandwidth Product	8 MHz
Gain	6 dB
Input Offset Voltage	5 mV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	1.2 GHz
Minimum CMRR Range	60dB ~ 75dB
Supply Voltage	3.15V ~ 5.25V
Supply Voltage (Max)	5V ~ 7V
	Show
Size-Length	2.6 mm
Size-Width	2.6 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
