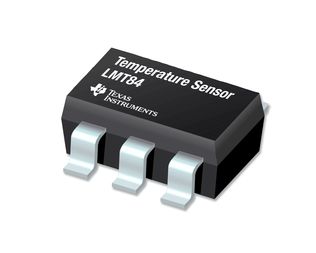

Image is for your reference only,please check specifications for details

LMT84DCKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC18782237
Category:
Temperature Sensor
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMT84DCKT Temperature Sensor IC, Analogue, ± 0.6℃, -50℃, 150℃, SC-70, 5Pins
Stock Locations:
Availability:
1,257 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.9

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMT84DCKT is a precision CMOS Temperature Sensors with an analogue output voltage that is linearly and inversely proportional to temperature. Its features make it suitable for many general temperature sensing applications. A class-AB output structure gives the device, strong output source and sink current capability that can directly drive up to 1.1nF capacitive loads. This means it is well suited to drive an analogue-to- digital converter sample-and-hold input with its transient load requirements.
5.4µA Low quiescent current
Average sensor gain of - 5.5mV/°C
Output is short-circuit protected
Push-pull output with ±50µA drive capability

Show

LMT84DCKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Supply Voltage (DC)	1.50V (min)
Output Current	7 mA
Supply Current	0.009 mA
Number of Positions	5 Position
Quiescent Current	5.40 µA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-50 ℃
Accuracy	±0.4 ℃
Supply Voltage	1.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.5 V
	Show
Size-Length	2.15 mm
Size-Width	1.4 mm
Size-Height	1 mm
Operating Temperature	-50℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
