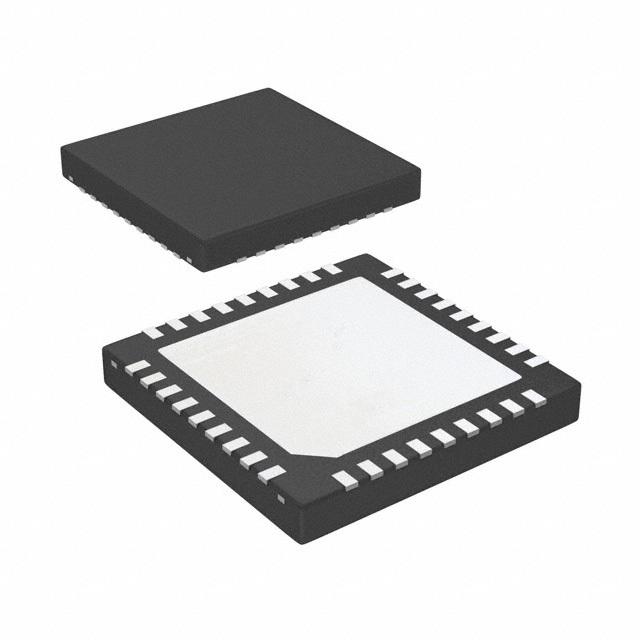

Image is for your reference only,please check specifications for details

LMX2571NJKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC7872100
Category:
Clock Generator IC
Package:
WFQFN-36
Datasheet:
Datasheet 3D Model
Description:
Clock Generator 10MHz to 150MHz Input 1344MHz Output 36Pin WQFN EP T/R
Stock Locations:
Availability:
270 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.71

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMX2571 is a low-power, high-performance, wideband PLLatinum RF synthesizer that integrates a delta-sigma fractional N PLL, multiple core voltage-controlled oscillator (VCO), programmable output dividers and two output buffers. The VCO cores work up to 5.376 GHz resulting in continuous output frequency range of 10 MHz to 1344 MHz.
This synthesizer can also be used with an external VCO. To that end, a dedicated 5-V charge pump and an output divider are available for this configuration.
A unique programmable multiplier is also incorporated to help improve spurs, allowing the system to use every channel even if it falls on an integer boundary.
The output has an integrated SPDT switch that can be used as a transmit/receive switch in FDD radio application. Both outputs can also be turned on to provide 2 outputs at the same time.
The LMX2571 supports direct digital FSK modulation through programming or pins. Discrete level FSK, pulse shaping FSK, and analog FM modulation are supported.
A new FastLock technique can be used allowing the user to step from one frequency to the next in less than 1.5 ms even when an external VCO is used with a narrow band loop filter.

Show

LMX2571NJKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	WFQFN-36
Frequency	1.34 GHz
Supply Voltage (DC)	3.15V ~ 5.00V
Number of Outputs	2 Output
Number of Circuits	1 Circuit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.15V ~ 3.45V
Supply Voltage (Max)	3.45 V
Supply Voltage (Min)	3.15 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
