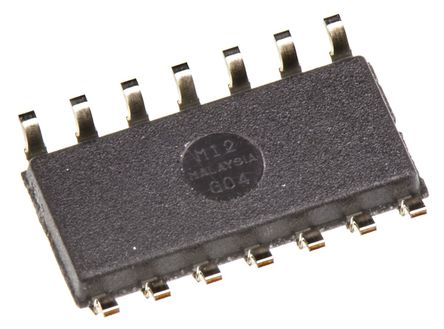

Image is for your reference only,please check specifications for details

LOG112AID - TI
Manufacturer:
TI
ManyChip's Part#:
MC4862936
Category:
Amplifier, Buffer IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LOG112AID Logarithmic Amplifier, 1 Amplifier, 7.5 Decades, 500mV / Decade, 2.6 ms, SOIC, 14Pins
Stock Locations:
Availability:
1,030 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 237.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LOG112AID is a precision Logarithmic and Log Ratio Amplifier with on-chip 2.5V voltage reference. The versatile integrated circuit computes the logarithm or log ratio of an input current relative to a reference current. VLOGOUT of the LOG112 is trimmed to 0.5V per decade of input current, ensuring high precision over a wide dynamic range of input signals. The LOG112 features a 2.5V voltage reference that may be used to generate a precision current reference using an external resistor. Low DC offset voltage and temperature drift allow accurate measurement of low-level signals over the specified temperature range of -5 to +75°C.
Easy-to-use complete function
Output scaling amplifier
High accuracy - 0.2% FSO over 5 decades
1.75mA Low quiescent current
Green product and no Sb/Br

Show

LOG112AID Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	18.0 V
Supply Current	1.25 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	14 Position
Input Current	3.5 mA
Common Mode Rejection Ratio	100 dB
Quiescent Current	1.25 mA
Bandwidth	45 kHz
Slew Rate	500 mV/μs
Gain Bandwidth Product	1.4 MHz
Input Offset Voltage	1.5 mV
Input Bias Current	5 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	45 kHz
Gain Bandwidth	1.4 MHz
Minimum CMRR Range	95dB ~ 105dB
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	8.65 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-5℃ ~ 75℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
