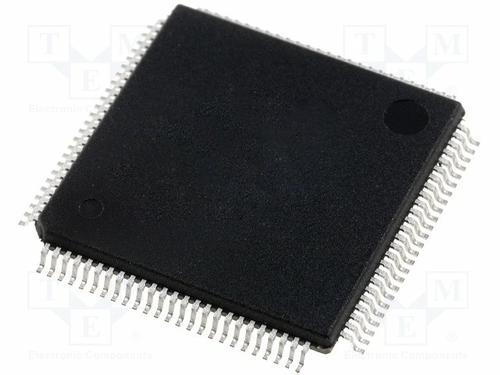

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Overview
- The LPC2387 is an ARM7 microcontroller for embedded applications featuring a high level of integration and low power consumption at frequencies of 72 MHz. Features include 512 kB of flash memory, 98 kB of SRAM, Ethernet MAC, USB Device/Host/OTG, DMA controller, 4 UARTs, 2 CAN channels, 3 SSP/SPI, 3 I2C, I2S, 8-channel 10-bit ADC, 10-bit DAC, 2 PWM, 4 general purpose timers, low power Real-Time Clock with separate battery supply, and up to 70 general purpose I/O pins. The LPC2387 is pin-compatible to the LPC176x Cortex-M3 MCU series.
- MoreLess
- ## Features
- * ARM7TDMI-S processor, running at up to 72 MHz
- * 512 kB on-chip flash program memory
- * 64 kB of SRAM on the ARM local bus for high performance CPU access
- * 16 kB SRAM for Ethernet interface. Can also be used as general purpose SRAM
- * 16 kB SRAM for general purpose DMA use also accessible by the USB
- * Dual Advanced High-performance Bus (AHB) system
- * Advanced Vectored Interrupt Controller (VIC)
- * General Purpose DMA (GPDMA) on AHB controller
- * Ethernet MAC with associated DMA controller
- * USB 2.0 device/host/OTG with on-chip PHY and associated DMA controller
- * Four UARTs with fractional baud rate generation
- * CAN controller with two channels
- * SPI controller
- * Two SSP controllers, with FIFO and multi-protocol capabilities
- * Three I2C-bus interfaces (one with open-drain and two with standard port pins)
- * I2S (Inter-IC Sound) interface for digital audio input or output
- * SD/MMC memory card interface
- * 70 general purpose I/O pins with configurable pull-up/down resistors
- * 10-bit ADC with input multiplexing among 6 pins
- * 10-bit DAC
- * Four general purpose timers/counters
- * One PWM/timer block with support for three-phase motor control
- * Real-Time Clock (RTC)
- * 2 kB SRAM powered from the RTC power pin
- * WatchDog Timer (WDT)
- * Standard ARM test/debug interface for compatibility with existing tools
- * Emulation trace module supports real-time trace
- * Single 3.3 V power supply (3.0 V to 3.6 V)
- * Four reduced power modes: idle, sleep, power-down, and deep power-down
- * Four external interrupt inputs configurable as edge/level sensitive
- * Processor wake-up from Power-down mode via any interrupt
- * Two independent power domains allow fine tuning of power consumption
- * Each peripheral has its own clock divider for further power saving
- * Brownout detect with separate thresholds for interrupt and forced reset
- * On-chip power-on reset
- * On-chip crystal oscillator with an operating range of 1 MHz to 25 MHz
- * 4 MHz internal RC oscillator trimmed to 1 % accuracy
- * On-chip PLL
- ## Target Applications
- * Industrial control
- * Medical systems
- * Protocol converter
- * Communications
- ## Features
LPC2387FBD100 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | LQFP-100 |
| Operating Voltage | 3VDC ~ 3.6VDC |
| Clock Speed | 72 MHz |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
