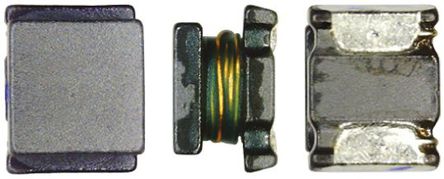

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- LQH32M Series LQH32M series consists of miniature chip inductors wound on a special ferrite core. Features 1. High Q value at high frequencies and low DC resistance 2. Wide inductance range from 1.0 to 560 micro H
LQH32MN1R0M23L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 3225 |
| Case/Package | 1210 |
| Current Rating | 445 mA |
| Capacitance Tolerance | ±20 % |
| Inductance | 1 µH |
| Self Resonant Frequency | 100 MHz |
| Part Family | LQH |
| Shielding | No |
| Inductance Tolerance | ±20 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤500 mΩ |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.5 Ω |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 2.5 mm |
| Size-Height | 2 mm |
| Weight | 50.0 mg |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 2000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
