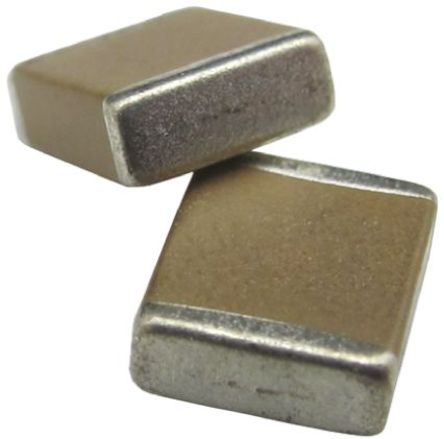

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 3.3µH Shielded Multilayer Inductor 800mA 300mOhm Max 1206 (3216 Metric)
LQM31PN3R3M00L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 3216 |
| Case/Package | 1206 |
| Current Rating | 800 mA |
| Capacitance Tolerance | ±20 % |
| Inductance | 3.3 μH |
| Self Resonant Frequency | 30 MHz |
| Part Family | LQM |
| Inductance Tolerance | ±20 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤300 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Accuracy | ±20 % |
| Resistance (DC Max) | 300 mΩ |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 1.6 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 3000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
