Description

The LQW series from Murata are wire wound inductors used for general purpose applications. These inductors with high Q values are mainly used in matching circuits of RF units for excellent attenuation characteristics in band pass filters. They are also used in the matching applications of antennas for maintaining transmission and reception sensitivity. Innovative coil and case structures provide low Rdc characteristics.
Inductance value ranges from 1.1nH to 4.7µH
EIA 0201, 03015, 0402, 0603, 0805, 1008, 1206 case sizes available
±0.5nH, ±5%, ±10%, ±20%, ±30%tolerance
Operating temperature range -55°C to +125°C
Low DC resistance
Extremely high Q (Quality factor) value
Large currents can be supported

Show

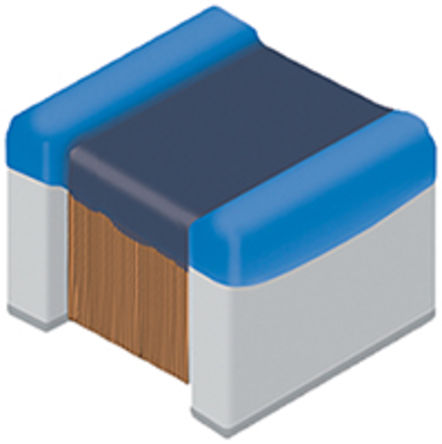

LQW2BASR47J00L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package (SI)	2012
Case/Package	0805
Current Rating	250 mA
Capacitance Tolerance	±5 %
Inductance	470 nH
Self Resonant Frequency	300 MHz
Q-Factor	33.0
Part Family	LQW
Inductance Tolerance	±5 %
Test Frequency	50 MHz
DC Resistance (DCR)	≤1.76 Ω
Current Rating (DC)	250 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	1.76 Ω
	Show
Size-Length	2.09 mm
Size-Width	1.25 mm
Size-Height	1.52 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
Minimum Packing Quantity	2000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
