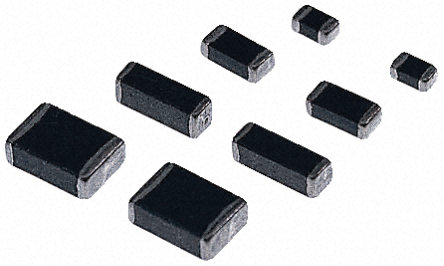

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 100nH Unshielded Wirewound Inductor 350mA 380mOhm Max Nonstandard
LQW2BHNR10J03L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Current Rating | 350 mA |
| Capacitance Tolerance | ±5 % |
| Inductance | 100 nH |
| Self Resonant Frequency | 900 MHz |
| Part Family | LQW |
| Inductance Tolerance | ±5 % |
| Test Frequency | 100 MHz |
| DC Resistance (DCR) | ≤380 mΩ |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 380 mΩ |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.5 mm |
| Size-Height | 1.7 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 2000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
