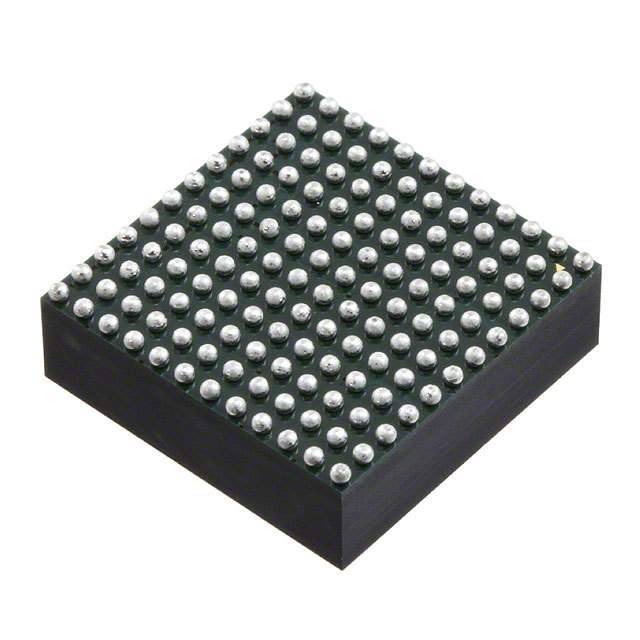

Image is for your reference only,please check specifications for details
- LTM4620AIY - Linear Technology
-
Manufacturer:Linear Technology
-
ManyChip's Part#:MC25614833
-
Category:DC to DC Converter
-
Package:BGA-144
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4.5V to 16V Step Down/Step Up Dual-Out 0.6V to 5.3V 13A/13A uModule 144Pin BGA Tray
-
Stock Locations:
-
Availability:106 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 79.67
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this LTM4620AIY DC to DC converter from Linear Technology.
LTM4620AIY Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 144 Pin |
| Case/Package | BGA-144 |
| Number of Outputs | 2 Output |
| Output Voltage | 0.6V ~ 5.3V |
| Output Current | 13 A |
| Number of Positions | 144 Position |
| Switching Frequency | 780 kHz |
| Switching Current | 20 A |
| Input Voltage (Max) | 16 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 5.3 V |
| Output Voltage (Min) | 600 mV |
| Output Current (Max) | 13A, 13A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
