Description

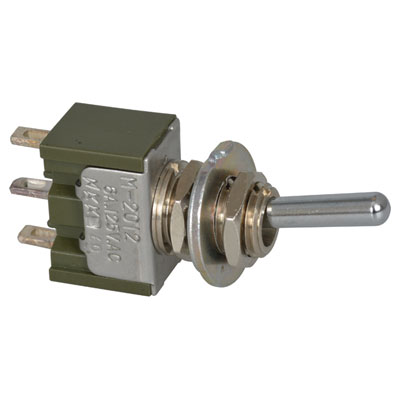

The M2012SS1W01 is a single-pole double-throw (SPDT) miniature Toggle Switch with solder lug terminals, ON-NONE-ON function, 0.413-inch (10.5mm) bat small toggles and 0.350-inch (8.9mm) threaded with keyway small bushings. The M series toggle switch has diallyl phthalate resin (UL94V-0) case, brass with chrome plating toggle and brass with nickel plating bushing. The anti-jamming design protects contacts from damage due to excessive downward force on actuator. The high torque bushing construction prevents rotation or separation from frame during installation. The high insulating barriers increase isolation of circuits in multi-pole devices and provide added protection to contact points.
Epoxy sealed terminals prevent entry of solder flux and other contaminants
Prominent external insulating barriers increase insulation resistance and dielectric strength
10mR Maximum contact resistance
1000MR at 500VDC Minimum insulation resistance
-30 to +85°C Operating temperature range

Show

M2012SS1W01 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel, Solder Lug
Contact Plating	Silver
Voltage Rating (DC)	30 V
Actuator Type	Standard
Voltage Rating (AC)	125 V
Current Rating	6 A
Insulation Resistance	1.00 GΩ
Number of Rows	1 Row
Orientation	Vertical
Contacts Type	SPDT
Flammability Rating	UL 94 V-0
Number of Positions	2 Position
Current Rating (Max)	6A @125VAC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	250 VAC
Maximum Contact Resistance (Max)	10 mΩ
	Show
Size-Length	13 mm
Size-Width	7.90 mm
Size-Height	33.3 mm
Contact Material	Silver
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
