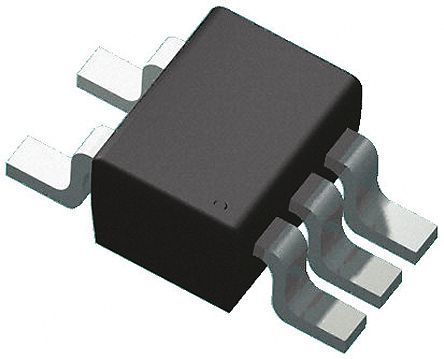

Image is for your reference only,please check specifications for details

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The M74VHC1GT125DT1G is a single gate non-inverting Buffer/CMOS Logic Level Shifter fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent bipolar Schottky TTL while maintaining CMOS low power dissipation. It requires the 3-state control input (OE) to be set high to place the output into the high impedance state. The device input is compatible with TTL-type input thresholds and the output has a full 5V CMOS level output swing. The input protection circuitry on this device allows overvoltage tolerance on the input, allowing the device to be used as a logic-level translator from 3V CMOS logic to 5V CMOS Logic or from 1.8V CMOS logic to 3V CMOS Logic while operating at the high-voltage power supply. The input structure provides protection when voltages up to 7V are applied, regardless of the supply voltage. This allows the buffer to be used to interface 5V circuits to 3V circuits. The output structures also provide protection when VCC = 0V.
Power down protection provided on inputs and outputs
Balanced propagation delays
Pin and function compatible with other standard logic families
LSTTL-Compatible inputs
62 FETs and 16 equivalent gates chip complexity
High speed - Propagation delay (tpd) = 3.5ns typical at VCC = 5V
Low power dissipation - ICC = 1µA maximum at TA = 25°C

Show

M74VHC1GT125DT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Supply Voltage (DC)	5.00 V
Operating Voltage	3.0V ~ 5.5V
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Supply Current	40 μA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Number of Bits	1 Bit
Power Dissipation	200 mW
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
