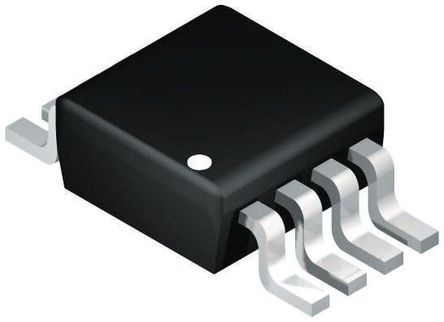

Image is for your reference only,please check specifications for details
- MAX1674EUA+ - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC36824536
-
Category:DC to DC Converter
-
Package:TSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC Single Step Up 0.7V to 5.5V 8Pin uMAX
-
Stock Locations:
-
Availability:311 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.23
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MAX1674EUA+ is a high-efficiency, low-supply-current compact step-up DC-DC Converter features a built-in synchronous rectifier, which improves efficiency and reduces size and cost by eliminating the need for an external Schottky diode. Quiescent supply current is only 16µA. The input voltage ranges from 0.7V to VOUT, where VOUT can be set from 2 to 5.5V. Start-up is guaranteed from 1.1V inputs. The MAX1674 have a preset, pin-selectable output for 5 or 3.3V. The outputs can also be adjusted to other voltages using two external resistors.
- 94% Efficient at 200mA output current
- 16µA Quiescent supply current
- Internal synchronous rectifier (no external diode)
- 0.1µA Logic-controlled shutdown
- LBI/LBO low-battery detector
- Selectable current limit for reduced ripple
MAX1674EUA+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSSOP-8 |
| Frequency | 500 kHz |
| Supply Voltage (DC) | 6.00 V |
| Power Rating | 330 mW |
| Number of Outputs | 1 Output |
| Output Voltage | 2.5.5 V |
| Output Current | 200 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Switching Frequency | 500 kHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 0.7 V |
| Output Voltage (Max) | 5.5 V |
| Output Voltage (Min) | 2 V |
| Output Current (Max) | 1.5 A |
| Output Current (Min) | 180 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 0.7 V |
| Supply Voltage (Min) | 0.7 V |
| Input Voltage | 0.7V ~ 5.5V |
| Show | |
| Size-Length | 3.05 mm |
| Size-Width | 3.05 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
