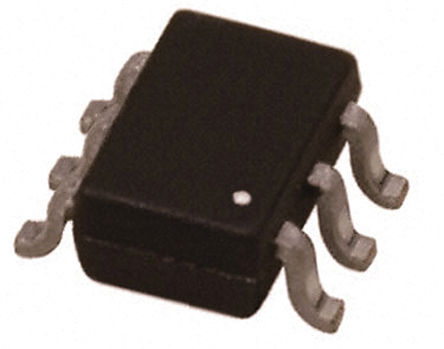

Image is for your reference only,please check specifications for details

MAX1720EUTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3644696
Category:
DC to DC Converter
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MAX1720EUTG DC-DC Adjustable Charge Pump Voltage Converter, 1.15V to 5.5V in, -5.5V to -1.15V/50mA out, TSOP-6
Stock Locations:
Availability:
246 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.36

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MAX1720EUTG is a CMOS charge pump switched capacitor Voltage Inverter with shutdown designed for operation over an input voltage range of 1.15 to 5.5V with an output current capability in excess of 50mA. The operating current consumption is only 67A and a power saving shutdown input is provided to further reduce the current to a mere 0.4A. The device contains a 12kHz oscillator that drives four low resistance MOSFET switches, yielding a low output resistance of 26R and a voltage conversion efficiency of 99%. This device requires only two external 10µF capacitors for a complete inverter making it an ideal solution for numerous batteries powered and board level applications.
67µA Low current consumption
0.4µA Power saving shutdown input for a reduced current
26R Low output resistance

Show

MAX1720EUTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	-5.50 V (min)
Output Current	50 mA
Supply Current	0.09 mA
Number of Positions	6 Position
Power Dissipation	0.313 W
Switching Frequency	12 kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.15 V
Output Voltage (Max)	0.3 V
Output Current (Max)	100 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	313 mW
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.15 V
Input Voltage	1.15V ~ 5.5V
	Show
Size-Length	3.1 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
