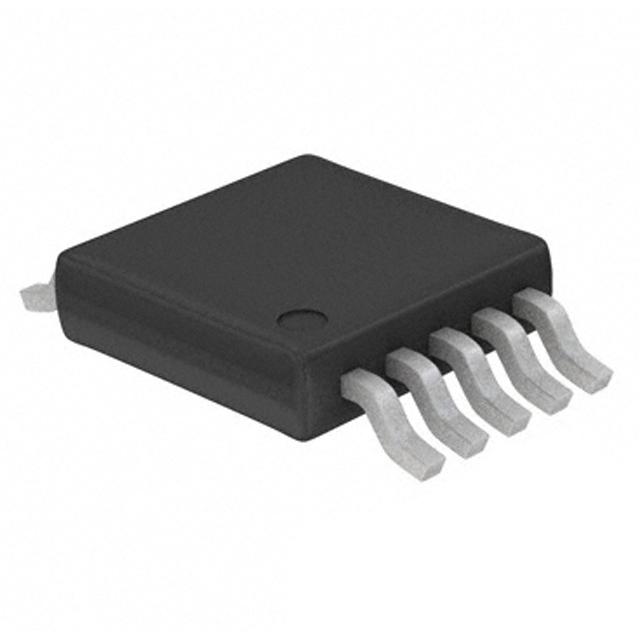

Image is for your reference only,please check specifications for details

Updated at 27/06/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MAX1744EUB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	TFSOP-10
Frequency	330 kHz
Supply Voltage (DC)	4.50V (min)
Number of Outputs	1 Output
Output Voltage	5.00 V, 5.00 V (max)
Output Current	10 A
Switching Frequency	330kHz (MAX)
Duty Cycle	100 %
Input Voltage (Max)	36 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	5 V
Output Current (Max)	10 A
Maximum Duty Cycle	1
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 36V
Input Voltage	4.5V ~ 36V
	Show
Size-Length	3.05 mm
Size-Width	3.05 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2013/06/20
ECCN Code	EAR99
