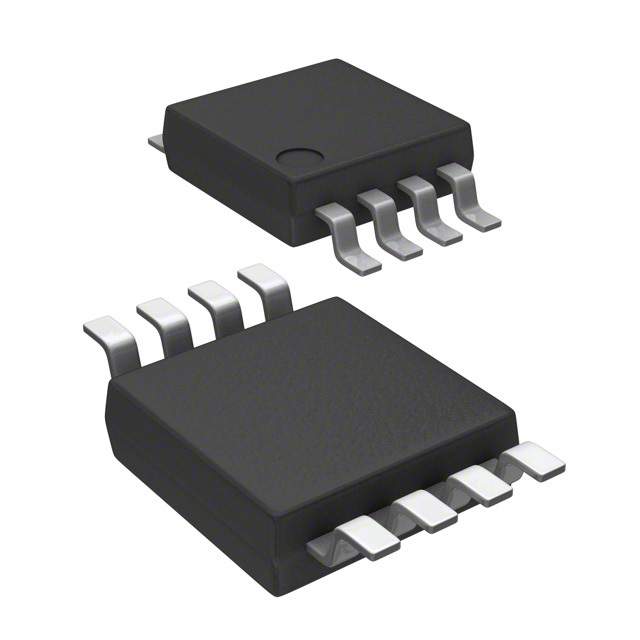

Image is for your reference only,please check specifications for details
- MAX1797EUA - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC135053510
-
Category:DC to DC Converter
-
Package:TSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 0.7V to 5.5V Step Up Single-Out 2V to 5.5V/3.3V/5V 0.55A 8Pin uMAX
-
Stock Locations:
-
Availability:9,994 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.89
Updated at 25/05/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Boost Switching Regulator IC Positive Adjustable (Programmable) 2V (3.3V, 5V) 1 Output 800mA (Switch) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
MAX1797EUA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSSOP-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 5.50 V |
| Output Current | 1.00 A |
| Output Power | 330 mW |
| Switching Frequency | 500 kHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 1 V |
| Output Voltage (Max) | 5.5 V |
| Output Current (Max) | 0.55 A |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
