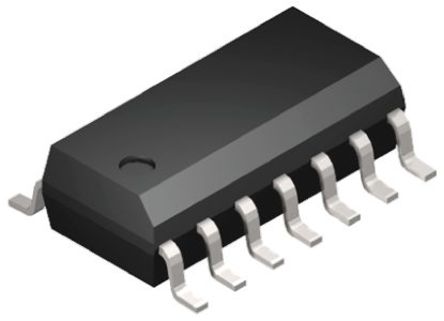

Image is for your reference only,please check specifications for details

MAX3070EESD+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC31845270
Category:
Interface IC, Interface Controller
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
MAXIM INTEGRATED PRODUCTS MAX3070EESD+. Transceiver RS422/RS485 Driver, 2.97V-3.63V Supply, SOIC-14
Stock Locations:
Availability:
224 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.36

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MAX3070EESD+ is a ±15kV ESD-protected, fail-safe, hot-swap, RS-485/RS-422 Transceiver. This device includes fail-safe circuitry, guaranteeing a logic-high receiver output when receiver inputs are open or shorted. The receiver outputs a logic high if all transmitters on a terminated bus are disabled (high impedance). The MAX3070E include a hot-swap capability to eliminate false transitions on the bus during power-up or hot insertion. The MAX3070E feature reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission up to 250kbps. The MAX3070E is intended for full-duplex communications. The MAX3070E transceiver draw 800µA of supply current when unloaded or when fully loaded with the drivers disabled. All devices have a 1/8-unit load receiver input impedance, allowing up to 256 transceivers on the bus.
Hot-swap input structure on DE and RE-bar
Enhanced slew-rate limiting facilitates error-free data transmission
Allows up to 256 transceivers on the bus
ESD sensitive device, take proper precaution while handling the device.

Show

MAX3070EESD+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	2.97V (min)
Supply Current	800 µA
Number of Positions	14 Position
Power Dissipation	667 mW
Data Rate	250 kbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.63 V
Supply Voltage (Min)	2.97 V
Input Voltage	2.97V ~ 3.63V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
