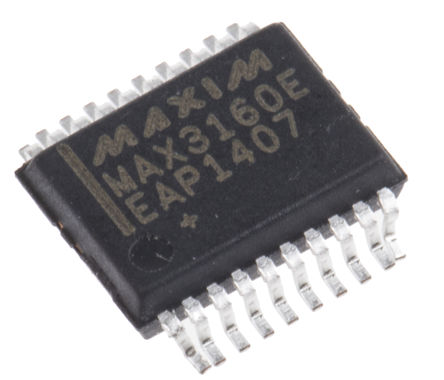

MAX3160EEAP+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC37762596
Category:
Interface IC, Interface Controller
Package:
SSOP-20
Datasheet:
Datasheet 3D Model
Description:
Transceiver RS232, RS422, RS485, 3V-5.5V supply, 2 Drivers, SSOP-20
Stock Locations:
Availability:
312 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 20.7

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MAX3160EEAP+ is a programmable RS-232/RS-485/RS-422 Multiprotocol Transceiver for point-of-sales equipment. The MAX3160E is pin programmable as a 2Tx/2Rx RS-232 interface or a single RS-485/RS-422 transceiver. The MAX3160E feature enhanced electrostatic discharge (ESD) protection. All of the transmitter outputs and receiver inputs are protected to ±15kV using the human body model. All devices incorporate a proprietary low-dropout transmitter output stage and an on-board dual charge pump to allow RS-232- and RS-485-/RS-422-compliant performance from a +3 to +5.5V supply. These devices also feature pin-selectable transmitter slew rates for RS-232 and RS-485/RS-422 modes. Slew-rate limiting minimizes EMI and reduces reflections caused by improperly terminated cables, allowing error-free data transmission up to 250kbps. Disabling slew-rate limiting allows these devices to transmit at data rates up to 10Mbps in RS-485/RS-422 mode and up to 1Mbps in RS-232 mode.
Integrated protection increases robustness - Thermal protection from excessive power dissipation
Integrated charge pump circuitry saves board space
1µA Shutdown supply current saves power
Allows up to 256 transceivers on the bus

Show

MAX3160EEAP+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SSOP-20
Supply Voltage (DC)	3.00V (min)
Supply Current	2.5 mA
Number of Channels	2 Channel
Number of Positions	20 Position
Data Rate	1.00 Mbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	7.33 mm
Size-Width	5.38 mm
Size-Height	1.78 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
