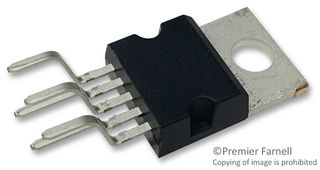

Image is for your reference only,please check specifications for details

L200CH - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC167783063
Category:
Voltage Regulator
Package:
Pentawatt-5
Datasheet:
Datasheet 3D Model
Description:
DC input voltage: 40V; peak input voltage: 60V; adjustable voltage and current regulator For voltage and current programmable regulation
Stock Locations:
Availability:
1,809 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.62

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Buck Switching Regulator IC Positive Adjustable 2.85V 1 Output 2A Pentawatt-5 (Horizontal, Bent and Staggered Leads)

Show

L200CH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	Pentawatt-5
Number of Outputs	1 Output
Output Voltage	2.85V ~ 36V
Output Current	2 A
Input Voltage (Max)	60 V
Output Voltage (Max)	36 V
Output Voltage (Min)	2.85 V
Output Current (Max)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-25 ℃
Input Voltage	≤60 V
	Show
Operating Temperature	-25℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/06/16
