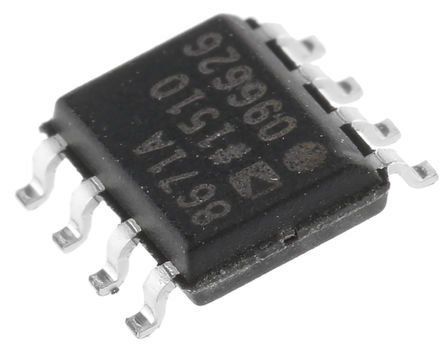

Image is for your reference only,please check specifications for details

AD8671ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC251965
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8671ARZ Operational Amplifier, Single, 1 Amplifier, 10MHz, 4V/µs, ± 5V to ± 15V, SOIC, 8Pins
Stock Locations:
Availability:
2,145 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.44

Updated at 03/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8671ARZ is a Very Low Noise High Precision Amplifier features very low offset voltage and drift, low input bias current, 10MHz bandwidth and low power consumption. Outputs are stable with capacitive loads of over 1000pF. Supply current is less than 3mA per amplifier at 30V. The combination of ultralow noise, high precision, speed and stability is unmatched. Applications for these amplifiers include high quality PLL filters, precision filters, medical and analytical instrumentation, precision power supply controls, ATE, data acquisition and precision controls as well as professional quality audio.
2.8nV/√Hz Noise, 77nV p-p
12nA Maximum input bias current
75µV Maximum offset voltage
120dB Minimum open-loop gain
3mA Typical supply current per amplifier
Dual-supply operation
Unity-gain stable
No phase reversal
ESD sensitive device, take proper precaution while handling the device.

Show

AD8671ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	15.0 V
Supply Current	3 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	120 dB
Input Capacitance	6.25 pF
Bandwidth	10 MHz
Slew Rate	4.00 V/μs
Gain Bandwidth Product	10 MHz
Input Impedance	3.50 GΩ
Gain	135 dB
Input Offset Voltage	20 µV
Input Bias Current	3 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	10 MHz
Minimum CMRR Range	100 dB
Supply Voltage (Max)	30V ~ 32V
Supply Voltage (Min)	10 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
