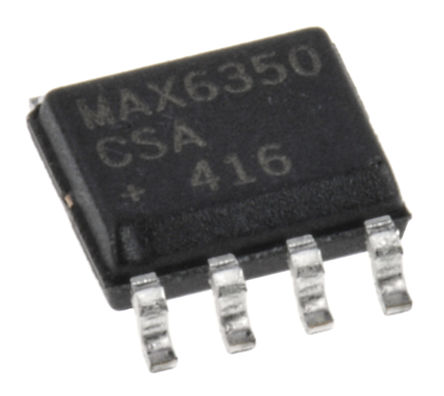

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MAX6350CSA+ is a low-noise, precision Voltage Reference with extremely low, 0.5ppm/°C typical temperature coefficients and excellent, ±0.02% initial accuracy. These devices feature buried-Zener technology for lowest noise performance. Load-regulation specifications are guaranteed for source and sink currents up to 15mA. Excellent line and load regulation and low output impedance at high frequencies make them ideal for high-resolution data-conversion systems up to 16 bits. The MAX6350 is set for a 5V output.
±15mA Output source and sink current
Industry-standard pinout
Excellent transient response
Low, 30ppm/1000h long-term stability
Stable for all capacitive loads

Show

MAX6350CSA+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Capacitance Tolerance	±0.02 %
Input Voltage (DC)	8.00V ~ 36.0V
Output Voltage	5 V
Output Current	15 mA
Supply Current	3.3 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Input Voltage (Max)	36 V
Input Voltage (Min)	8 V
Output Voltage (Max)	5 V
Output Voltage (Min)	5 V
Output Current (Max)	15 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Junction Temperature (Max)	70 ℃
Input Voltage	8V ~ 36V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	0℃ ~ 70℃
Temperature Coefficient	±0.5 ppm/℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
