Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 3 Pin |

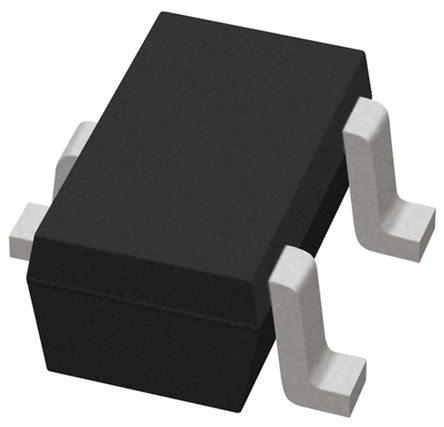

Case/Package | SC-70-3 |
Supply Voltage (DC) | 1.20V (min) |
Halogen Free Status | Halogen Free |
Supply Current | 800 nA |
Number of Positions | 3 Position |
Threshold Voltage | 2.93 V |
Reset Threshold Voltage (Min) | 2.89 V |
Reset Threshold Voltage (Max) | 2.96 V |
Operating Temperature (Max) | 105 ℃ |
Operating Temperature (Min) | -40 ℃ |
Supply Voltage (Max) | 5.5 V |
Supply Voltage (Min) | 1.2 V |
Show | |
Size-Length | 2.2 mm |
Size-Width | 1.35 mm |
Size-Height | 0.9 mm |
Operating Temperature | -40℃ ~ 105℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Cut Tape (CT) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance Edition | 2015/12/17 |
ECCN Code | EAR99 |
