Description

The MBR20200CTG is a Switch‐mode Schottky Barrier Rectifier with UL94V-0 epoxy moulded case and all external surfaces corrosion-resistant and terminal leads are readily solderable finish. The dual power rectifier uses Schottky barrier technology with a platinum barrier metal. This state of the art device is designed for use in high frequency switching power supplies and converters with up to 48V outputs. This device blocks up to 200V and offers improved Schottky performance at frequencies from 250kHz to 5.0MHz.
Low forward voltage
Low power loss and high efficiency
High surge capacity
2°C/W Junction-to-case maximum thermal resistance
60°C/W Junction-to-ambient maximum thermal resistance
500pF Capacitance
ESD sensitive device, take proper precaution while handling the device.

Show

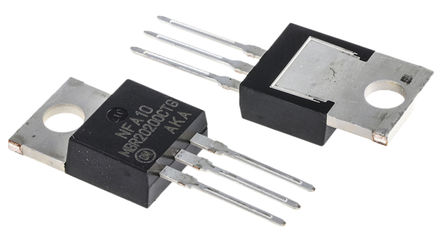

MBR20200CTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	200 V
Current Rating	20.0 A
Capacitance	500 pF
Number of Positions	3 Position
Forward Voltage	900mV @10A
Thermal Resistance	2℃/W (RθJC)
Reverse recovery time	40 ns
Forward Current	10 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	20 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	10.28 mm
Size-Width	4.82 mm
Size-Height	9.28 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	ECL99
HK STC License	NLR
