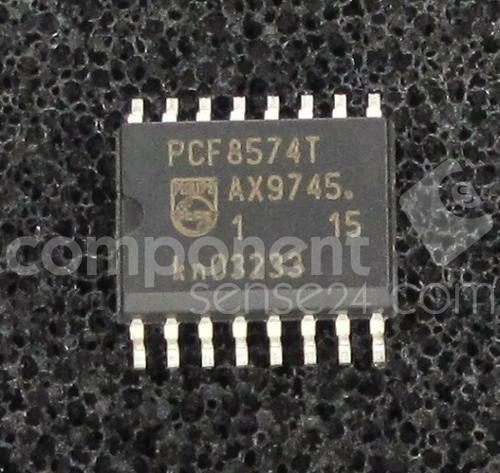

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Overview
- The PCF8574/74A provides general-purpose remote I/O expansion via the two-wire bidirectional I²C‑bus (serial clock (SCL), serial data (SDA)).
- The devices consist of eight quasi-bidirectional ports, 100 kHz I²C‑bus interface, three hardware address inputs and interrupt output operating between 2.5 V and 6 V. The quasi-bidirectional port can be independently assigned as an input to monitor interrupt status or keypads, or as an output to activate indicator devices such as LEDs. System master can read from the input port or write to the output port through a single register.
- The low current consumption of 2.5 μA (typical, static) is great for mobile applications and the latched output ports directly drive LEDs.
- The PCF8574 and PCF8574A are identical, except for the different fixed portion of the slave address. The three hardware address pins allow eight of each device to be on the same I²C‑bus, so there can be up to 16 of these I/O expanders PCF8574/74A together on the same I²C‑bus, supporting up to 128 I/Os (for example, 128 LEDs).
- The active LOW open-drain interrupt output (INT) can be connected to the interrupt logic of the microcontroller and is activated when any input state differs from its corresponding input port register state. It is used to indicate to the microcontroller that an input state has changed and the device needs to be interrogated without the microcontroller continuously polling the input register via the I²C‑bus.
- The internal Power-On Reset (POR) initializes the I/Os as inputs with a weak internal pull-up 100 μA current source.
- MoreLess
- ## Features
- * I²C-bus to parallel port expander
- * 100 kHz I²C‑bus interface (Standard-mode I²C-bus)
- * Operating supply voltage 2.5 V to 6 V with non-overvoltage tolerant I/O held to VDD with 100 μA current source
- * 8-bit remote I/O pins that default to inputs at power-up
- * Latched outputs directly drive LEDs
- * Total package sink capability of 80 mA
- * Active LOW open-drain interrupt output
- * Eight programmable slave addresses using three address pins
- * Low standby current (2.5 μA typical)
- * -40 °C to +85 °C operation
- * ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
- * Latch-up testing is done to JEDEC standard JESD78 which exceeds 100 mA
- * Packages offered: DIP16, SO16, SSOP20
- ## Target Applications
- * LED signs and displays
- * Servers
- * Key pads
- * Industrial control
- * Medical equipment
- * PLC
- * Cellular telephones
- * Mobile devices
- * Gaming machines
- * Instrumentation and test measurement
- ## Features
PCF8574T Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC |
| Number of Positions | 16 Position |
| Clock Speed | 0.1 MHz |
| Number of Inputs and Outputs | 8 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 6 V |
| Supply Voltage (Min) | 2.5 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Each |
| RoHS | RoHS Compliant |
| REACH SVHC Compliance | No SVHC |
