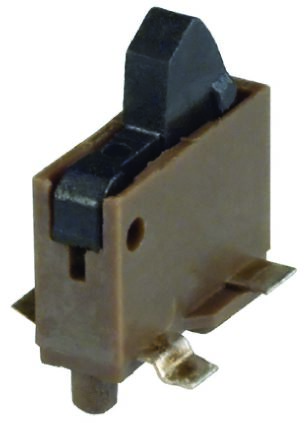

Image is for your reference only,please check specifications for details

Updated at 14/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

ESE22MV21T Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Orientation	Vertical
Contacts Type	SPST-NO
Contact Current Rating	10mA @5VDC
Current Rating (Max)	0.01A @5VDC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-10 ℃
Voltage Rating (DC Max)	5 V
Maximum Contact Resistance (Max)	500 mΩ
	Show
Size-Length	5.7 mm
Size-Width	1.9 mm
Size-Height	4.1 mm
Operating Temperature	-10℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
