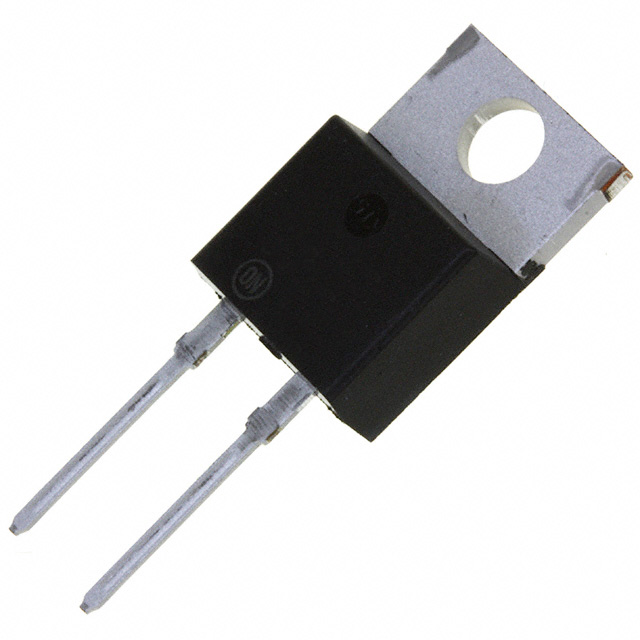

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 250 V, 40 A SWITCHMODE Schottky Power Rectifier
- Features
- •250 V Blocking Voltage
- •Low Forward Voltage Drop, VF= 0.86 V
- •Soft Recovery Characteristic, TRR< 35 ns
- •Low Reverse Current, IR= 30 A
- •Stable Switching Performance Over Temperature
- •Pb−Free Packages are Available
- Benefits
- •Reduces or Eliminates Reverse Recovery Oscillations
- •Minimizes Need for EMI Filtering
- •Reduces Switching Losses
- •Improved Efficiency
- Applications
- •Power Supply
- •Power Management
- •Automotive
- •Instrumentation
MBR40250 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | TO-220-2 |
| Voltage Rating (DC) | 250 V |
| Current Rating | 40.0 A |
| Output Current | ≤40.0 A |
| Forward Voltage | 970mV @40A |
| Polarity | Standard |
| Reverse recovery time | 35 ns |
| Forward Current | 40 A |
| Max Forward Surge Current (Ifsm) | 150 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 65 ℃ |
| Show | |
| Size-Length | 10.29 mm |
| Size-Width | 4.82 mm |
| Size-Height | 9.27 mm |
| Operating Temperature | 65℃ ~ 150℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
