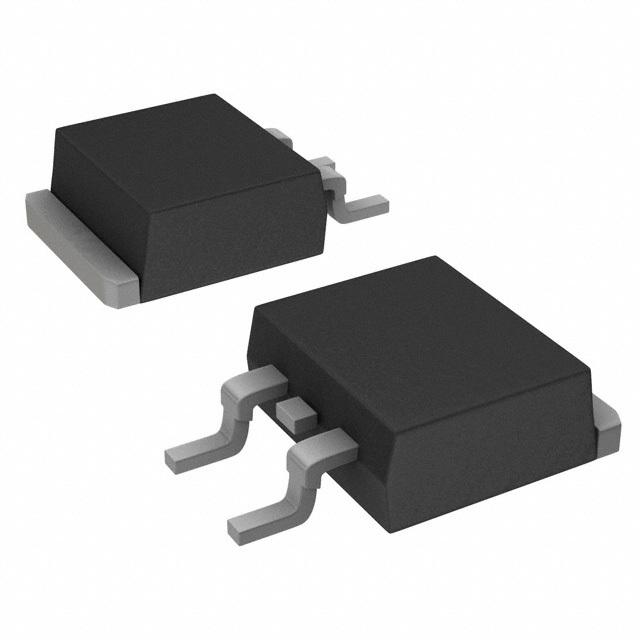

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MBRB2515L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-263-3
Voltage Rating (DC)	15.0 V
Current Rating	25.0 A
Output Current	≤25.0 A
Forward Voltage	0.45 V
Polarity	Standard
Max Repetitive Reverse Voltage (Vrrm)	15V
Forward Current	25 A
Max Forward Surge Current (Ifsm)	150 A
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	65 ℃
Junction Temperature	100℃ (Max)
	Show
Size-Length	10.29 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Operating Temperature	-65℃ ~ 100℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
