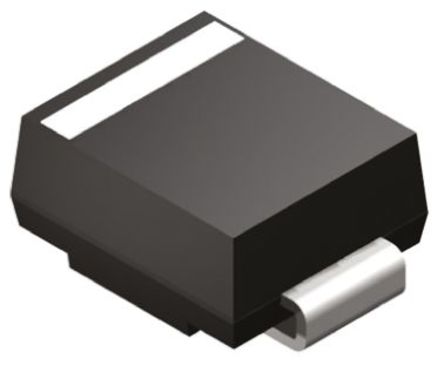

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MBRS130L is a compact surface-mount Schottky Barrier Rectifier with J-bend leads.
Colour band denotes cathode

Show

MBRS130L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Voltage Rating (DC)	30.0 V
Current Rating	1.00 A
Output Current	≤1.00 A
Number of Positions	2 Position
Forward Voltage	0.445 V
Polarity	Standard
Thermal Resistance	12℃/W (RθJL)
Forward Current	2 A
Max Forward Surge Current (Ifsm)	40 A
Maximum Forward Voltage (Max)	445 mV
Forward Current (Max)	2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	4.75 mm
Size-Width	3.95 mm
Size-Height	2.45 mm
Operating Temperature	-65℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
