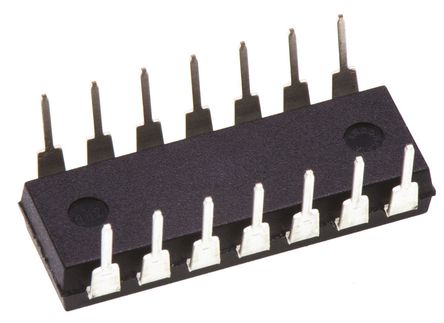

Image is for your reference only,please check specifications for details

MC33079PG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC11554996
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-14
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC33079PG Operational Amplifier, Quad, 4 Amplifier, 16MHz, 7V/µs, ± 5V to ± 18V, DIP, 14Pins
Stock Locations:
Availability:
9,621 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.07

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC33079PG is a high quality monolithic quad Operational Amplifier employing bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. This incorporates the use of high frequency PNP input transistors to produce amplifier exhibiting low input voltage noise with high gain bandwidth product and slew rate. The all NPN output stage exhibits no dead-band crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source and sink AC frequency performance.
Excellent frequency stability
ESD diodes provided on the inputs
7V/µs High slew rate
0.002% Low total harmonic distortion
ESD sensitive device, take proper precaution while handling the device.

Show

MC33079PG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Supply Voltage (DC)	18.0V (max)
Operating Voltage	10V ~ 36V
Halogen Free Status	Halogen Free
Supply Current	8.4 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	80 dB
Bandwidth	16 MHz
Slew Rate	7.00 V/μs
Gain Bandwidth Product	16 MHz
Input Offset Voltage	150 µV
Input Bias Current	300 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	16 MHz
Minimum CMRR Range	80 dB
	Show
Size-Length	19.56 mm
Size-Width	6.6 mm
Size-Height	3.68 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
