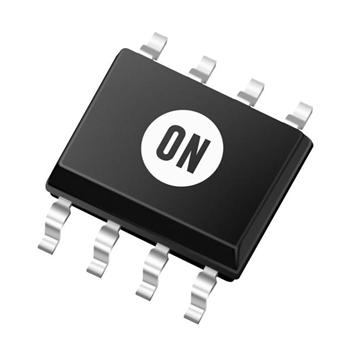

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MC33178/9 series is a family of high quality monolithic amplifiers employing Bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. This device family incorporates the use of high frequency PNP input transistors to produce amplifiers exhibiting low input offset voltage, noise and distortion. In addition, the amplifier provides high output current drive capability while consuming only 420A of drain current per amplifier. The NPN output stage used, exhibits no deadband crossover distortion, large output voltage swing, excellent phase and gain margins, low open−loop high frequency output impedance, symmetrical source and sink AC frequency performance.
- Features
- •600 Ω Output Drive Capability
- •Large Output Voltage Swing
- •Low Offset Voltage: 0.15 mV (Mean)
- •Low T.C. of Input Offset Voltage: 2.0 V/°C
- •Low Total Harmonic Distortion: 0.0024% (@ 1.0 kHz w/600Ω Load)
- •High Gain Bandwidth: 5.0 MHz
- •High Slew Rate: 2.0 V/s
- •Dual Supply Operation: ±2.0 V to ±18 V
- •ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Performance
- •Pb−Free Packages are Available
MC33178D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Number of Channels | 2 Channel |
| Common Mode Rejection Ratio | 80 dB |
| Gain Bandwidth Product | 5 MHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 4 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
