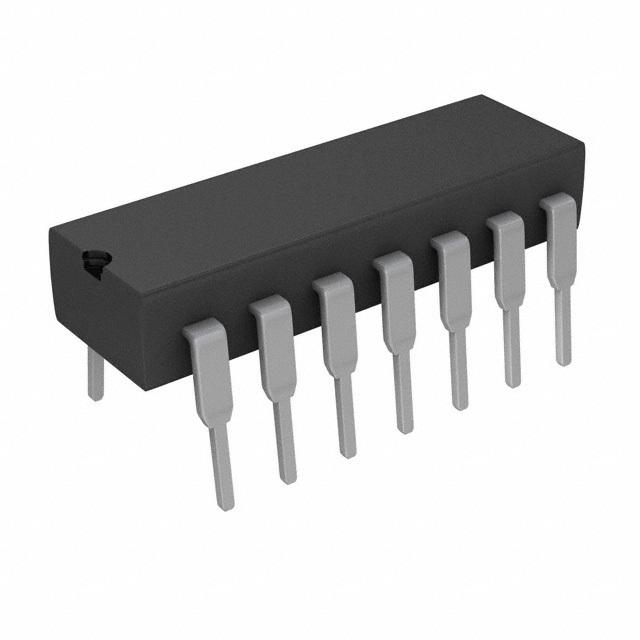

MC3403N - TI
Manufacturer:
TI
ManyChip's Part#:
MC15180007
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-14
Datasheet:
Datasheet 3D Model
Description:
Op Amps Quad Low Power ±15V/30V 14Pin PDIP Op Amps Quad Low Power ±15V/30V 14Pin PDIP
Stock Locations:
Availability:
716 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.59

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC3303 and the MC3403 are quadruple operational amplifiers similar in performance to the uA741, but with several distinct advantages. They are designed to operate from a single supply over a range of voltages from 3 V to 36 V. Operation from split supplies also is possible, provided the difference between the two supplies is 3 V to 36 V. The common-mode input range includes the negative supply. Output range is from the negative supply to VCC 1.5 V. Quiescent supply currents are less than one-half those of the uA741.
The MC3303 is characterized for operation from 40°C to 85°C, and the MC3403 is characterized for operation from 0°C to 70°C.

Show

MC3403N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Supply Current	2.8 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	70dB ~ 90dB
Rise Time	350 ns
Input Offset Drift	10.0 µV/K
Bandwidth	1 MHz
Slew Rate	600 mV/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	2 mV
Input Bias Current	200 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	1 MHz
Minimum CMRR Range	70 dB
Supply Voltage (Max)	30 V
Supply Voltage (Min)	5 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
