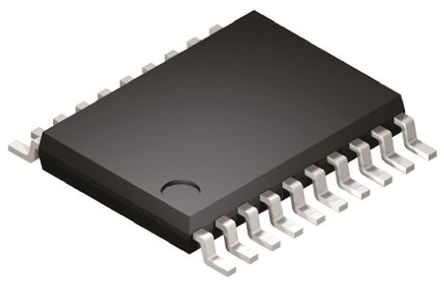

- MC74LCX245DTG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC5330087
-
Category:Logic Controller, Logic IC
-
Package:TSSOP-20
-
Datasheet:Datasheet 3D Model
-
Description:TRANSCEIVER, LOW VOLTAGE CMOS 16Bit, 20Pin TSSOP
-
Stock Locations:
-
Availability:91 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.86
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MC74LCX245DTG is a low voltage CMOS octal transceiver in 20 pin TSSOP package. This high performance, non inverting octal transceiver has 5V tolerant inputs and outputs (3-state, non-inverting). High impedance TTL compatible inputs significantly reduces current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A input voltage specification of 5.5V allows MC74LCX245 inputs to be safely driven from 5V devices if VCC is less than 5V. The MC74LCX245 is suitable for memory address driving and all TTL level bus oriented transceiver applications. The transmit/receive (T/R) input determines direction of data flow through bidirectional transceiver. Transmit (active-HIGH) enables data from A ports to B ports and receive (active-LOW) enables data from B to A ports. The MC74LCX245DTG has 3-state output current of ±5µA (VCC = 3.6 V, VIN = VIH or VIL, VOUT = 0 to 5.5V) and propagation delay input to output of 7ns at CL = 50pF, VCC = 3.3V ±0.3V.
- 10µA quiescent supply current at VCC = 3.6V, VIN = 5.5V or GND & 2V to 5.5V supply voltage range
- 5V tolerant, interface capability with 5V TTL logic
- Supports live insertion and withdrawal
- IOFF specification provides high impedance when VCC = 0V
- LVTTL and LVCMOS compatible
- 24mA balanced output sink and source capability
- Near zero static supply current in all three logic states (10µA) reduces system power requirements
- Latch-up performance exceeds 500mA
- Human body model greater than 2000V, machine model greater than 200V ESD performance
- Operating free air temperature range from -55°C to 125°C
MC74LCX245DTG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TSSOP-20 |
| Supply Voltage (DC) | 2.00V (min) |
| Operating Voltage | 2.0V ~ 5.5V |
| Capacitance | 25 pF |
| Halogen Free Status | Halogen Free |
| Number of Circuits | 8 Circuit |
| Number of Channels | 8 Channel |
| Number of Positions | 20 Position |
| Number of Bits | 8 Bit |
| Power Dissipation | 200 mW |
| Quiescent Current | 10 µA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 2V ~ 5.5V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Length | 6.6 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
