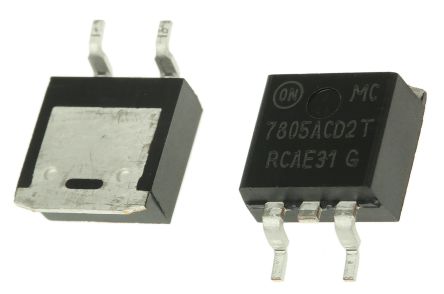

MC7805ACD2TG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC7927200
Category:
Voltage Regulator
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC7805ACD2TG Linear Voltage Regulator, 7805, Fixed, Positive Voltage, 10V To 35V In, 5V And 1A Out, TO-263-3
Stock Locations:
Availability:
227 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.61

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC7805ACD2TG is a monolithic integrated circuits Positive Voltage Regulator designed as fixed-voltage regulator for a wide variety of applications including local and on-card regulation. This regulator employs internal current limiting, thermal shutdown and safe-area compensation. With adequate heat-sinking it can deliver output currents in excess of 1A. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
No external components required
Internal thermal overload protection
Internal short-circuit current limiting
Output transistor safe area compensation
Output voltage offered in 1.5, 2 and 4% tolerance
0 to 125°C Operating temperature range

Show

MC7805ACD2TG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Operating Voltage	7.5V ~ 20V
Current Rating	3.30 mA
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	1 A
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	6 mA
voltage rating	2V @1A
Input Bias Current	3.30 mA
Input Voltage (Max)	35 V
Input Voltage (Min)	10 V
Output Current (Max)	2.2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±4 %
Input Voltage	≤35 V
	Show
Size-Length	10.24 mm
Size-Width	9.35 mm
Size-Height	30.02 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
