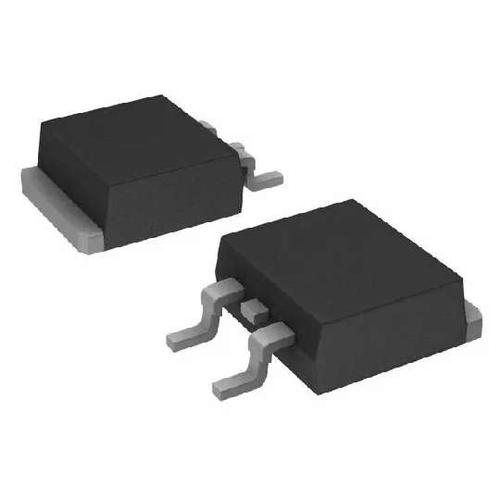

MC7812ABD2TR4G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2798963
Category:
Voltage Regulator
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
Linear Voltage Regulator, Positive, 12V, 1A Vout: 12V; TJ = -40℃ to +125℃
Stock Locations:
Availability:
72 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.88

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC7812ABD2TR4G is a monolithic Positive Voltage Regulator with 12V nominal voltage. It is designed as fixed-voltage regulator for a wide variety of applications including local, on-card regulation. This regulator employs internal current limiting, thermal shutdown and safe-area compensation. With adequate heat-sinking it can deliver output currents in excess of 1A. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
No external components required

Show

MC7812ABD2TR4G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Operating Voltage	14.8V ~ 27V
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	12 V
Output Current	1 A
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	3.4 mA
voltage rating	2V @1A
Input Voltage (Max)	35 V
Input Voltage (Min)	14 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±4 %
Input Voltage	≤35 V
	Show
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
