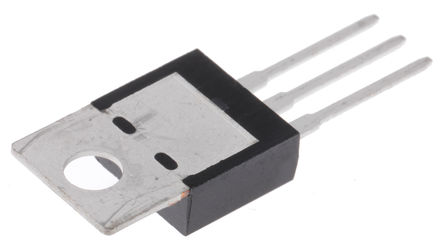

Image is for your reference only,please check specifications for details

MC7824BTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2670452
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC7824BTG Linear Voltage Regulator, 7824, Fixed, 33V To 40V In, 24V And 1A Out, TO-220-3
Stock Locations:
Availability:
66 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.82

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC7824BTG is a Positive Voltage Regulator, monolithic integrated circuit is designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation. This regulator employ internal current limiting, thermal shutdown and safe-area compensation. With adequate heat sinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
No external components required
Internal thermal overload protection
Internal short-circuit current limiting
Output transistor safe-area compensation
Output current in excess of 1.0A
1.4mR at 1kHz Output resistance
0.2A Short-circuit current limit (25°C)
2.2A Peak output current (25°C)
ESD sensitive device, take proper precaution while handling the device.

Show

MC7824BTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Current Rating	1.00 A
Power Rating	15 W
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	40.0V (max)
Output Voltage	24 V
Output Current	1 A
Supply Current	8 mA
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	8 mA
voltage rating	2V @1A
Thermal Resistance	5℃/W (RθJC)
Input Voltage (Max)	40 V
Input Voltage (Min)	33 V
Output Voltage (Min)	24 V
Output Current (Max)	2.2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±4 %
Supply Voltage	40 V
Input Voltage	≤40 V
	Show
Size-Length	10.28 mm
Size-Width	4.82 mm
Size-Height	15.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
