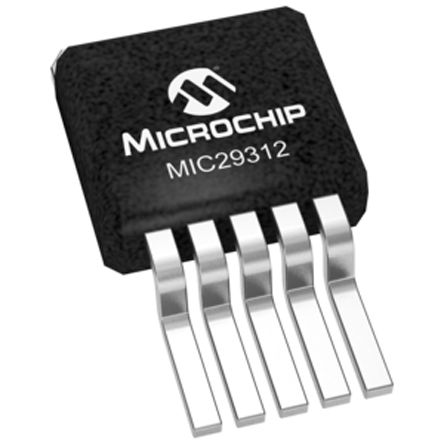

Image is for your reference only,please check specifications for details
- MIC29312WU - Microchip
-
Manufacturer:Microchip
-
ManyChip's Part#:MC11231250
-
Category:Voltage Regulator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:LDO Regulator Pos 1.24V to 15V 3A 6Pin(5+Tab) TO-263
-
Stock Locations:
-
Availability:278 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.01
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC 1 Output 3A TO-263-5
MIC29312WU Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | TO-263-5 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.24V ~ 15V |
| Output Current | 3 A |
| Number of Positions | 5 Position |
| Quiescent Current | 5 mA |
| voltage rating | 0.33V @1.5A,0.6V @3A,0.22V @750mA,0.08V @100mA |
| Input Voltage (Max) | 16 V |
| Input Voltage (Min) | 2.3 V |
| Output Voltage (Max) | 15 V |
| Output Voltage (Min) | 1.24 V |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Accuracy | ±2 % |
| Input Voltage | 2.3V ~ 16V |
| Show | |
| Size-Length | 10.67 mm |
| Size-Width | 9.17 mm |
| Size-Height | 4.59 mm |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
