Description
- General Description
- The MIC5800/5801 latched drivers are high-voltage, high current integrated circuits comprised of four or eight CMOS data latches, a bipolar Darlington transistor driver for each latch, and CMOS control circuitry for the common CLEAR, STROBE, and OUTPUT ENABLE functions.
- Features
- • 4.4MHz Minimum Data Input Rate
- • High-Voltage, Current Sink Outputs
- • Output Transient Protection
- • CMOS, PMOS, NMOS, and TTL Compatible Inputs
- • Internal Pull-Down Resistors
- • Low-Power CMOS Latches
MIC5801BN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |

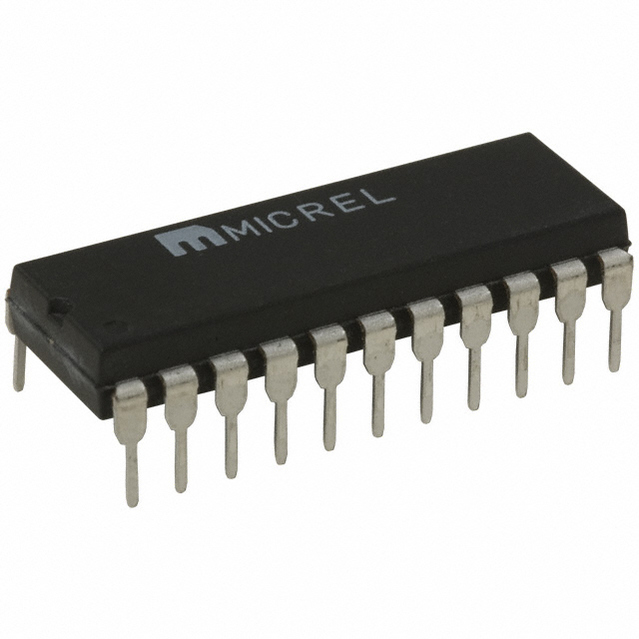

| Case/Package | DIP-22 |
| Supply Voltage (DC) | 15.0 V |
| Current Rating | 500 mA |
| Output Voltage | 50.0 V |
| Output Current (Max) | 500 mA |
| Show | |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
