Description

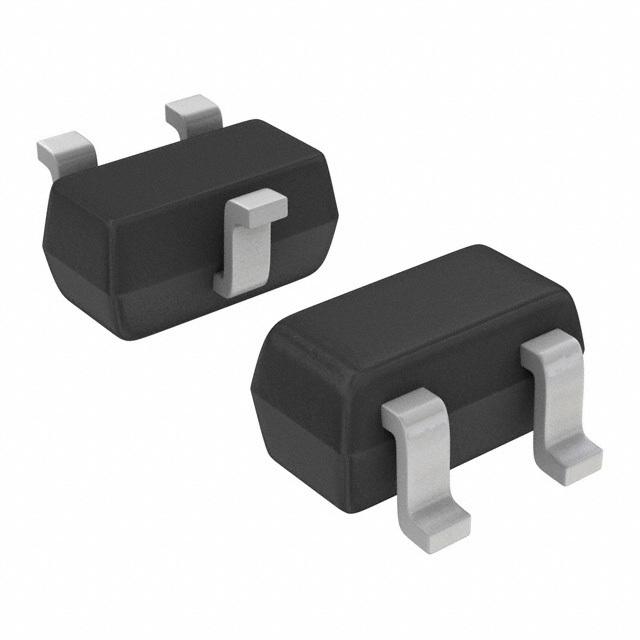

These Common Anode Silicon Epitaxial Planar Dual Diodes are designed for use in ultra high speed switching applications. The DAP222 device is housed in the SC−75/SOT−416 package which is designed for low power surface mount applications, where board space is at a premium. The DAP202U device is housed in the SC−70/SOT−323 package.
Features
•Fast trr
•Low CD
•Pb−Free Package is Available

Show

DAP222 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-75-3
Voltage Rating (DC)	80.0 V
Current Rating	100 mA
Capacitance	3.50 pF
Forward Voltage	1.2V @100mA
Power Dissipation	0.15 W
Reverse recovery time	10 ns
Max Repetitive Reverse Voltage (Vrrm)	80V
Forward Current	0.1 A
Max Reverse Leakage Current (Ir)	0.1uA
Maximum Forward Voltage (Max)	1.2V @100mA
Forward Current (Max)	0.1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	150 mW
	Show
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.75 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
