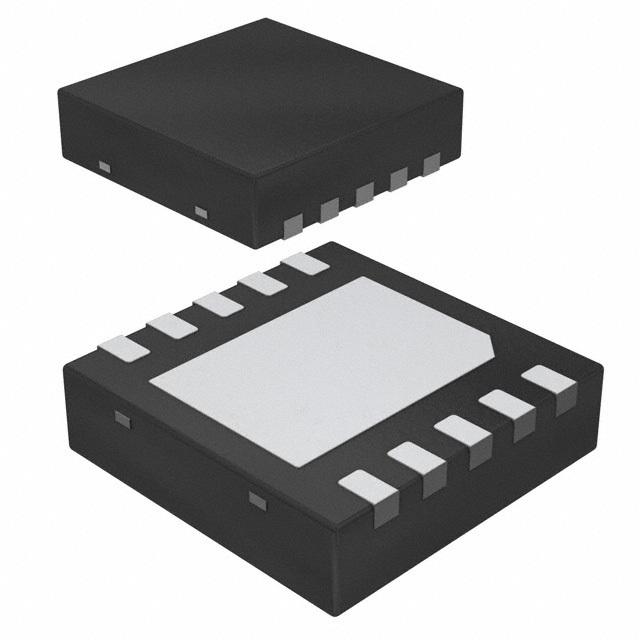

- Half-Bridge Gate Driver IC Non-Inverting 10-WSON (4x4)
LM5106SD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | WDFN-10 |
| Rise/Fall Time | 15ns, 10ns |
| Number of Outputs | 2 Output |
| Output Current | 1.8 A |
| Quiescent Current | 340 µA |
| Rise Time | 15 ns |
| Fall Time | 10 ns |
| Fall Time (Max) | 10 ns |
| Fall Time (Max) | 15 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 8V ~ 14V |
| Show | |
| Size-Length | 4 mm |
| Size-Width | 4 mm |
| Size-Height | 0.8 mm |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
