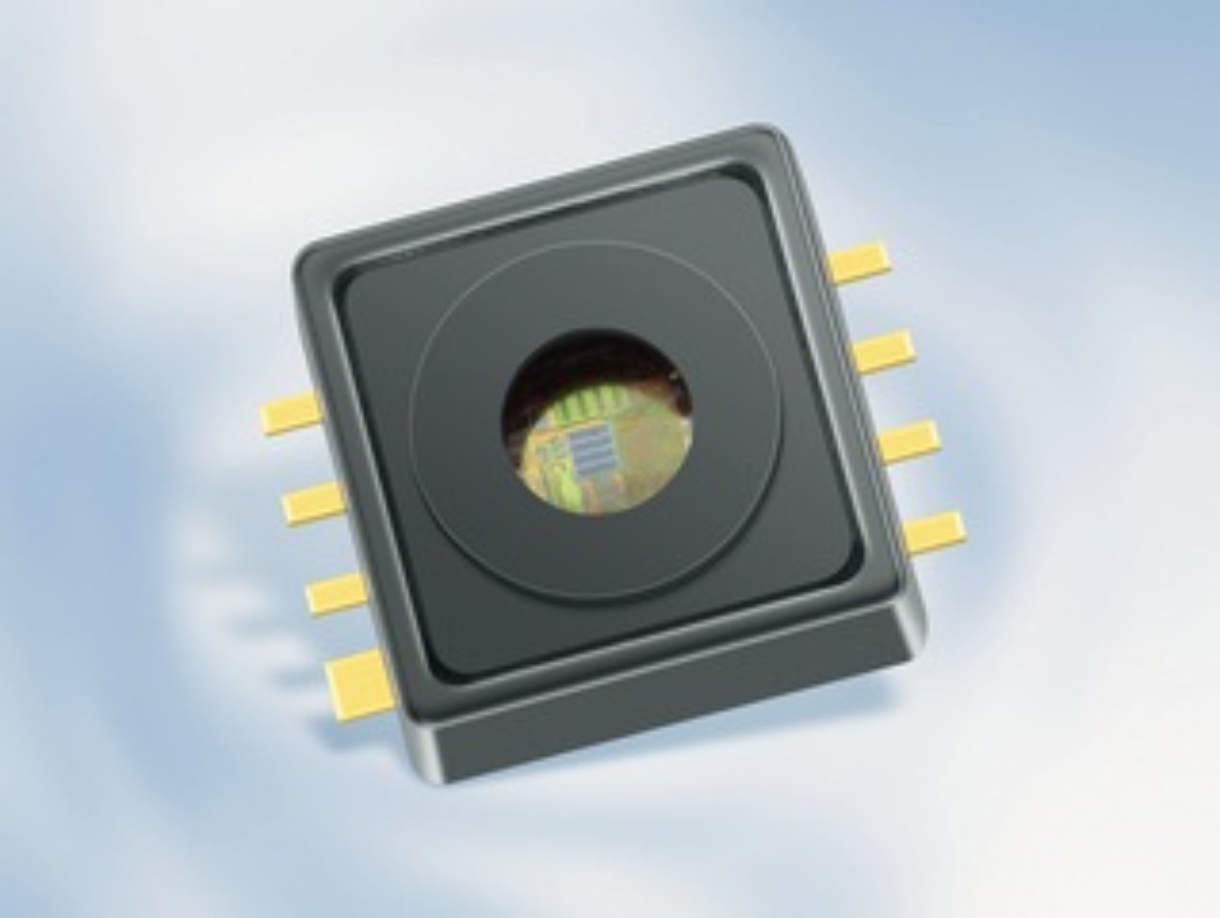

KP256 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC179450060
Package:
PG-DSOF-8
Datasheet:
Datasheet 3D Model
Description:
Capacitive Sensor, Absolute, 8.7Psi Min, 23.93Psi Max, 0.4-2.9V, Square, Surface Mount, GREEN, PLASTIC, DSOF-8
Stock Locations:
Availability:
308 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.76

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
The KP256 is a miniaturized Digital Barometric Air Pressure Sensor IC based on a capacitive principle. It is surface micromachined with a monolithic integrated signal conditioning circuit implemented in BiCMOS technology. The sensor converts a pressure into a 10-bit digital value and sends the information via the SPI interface. In addition, a temperature sensor is integrated on chip. Based on the received SPI command, the 10-bit temperature information will be transmitted via the SPI interface. A special reliability feature is the integrated diagnostic mode, which allows testing the sensor cells as well as the signal path. This diagnosis can be simply triggered with a SPI command. The chip is packaged in a “green” SMD housing. The sensor has been primarily developed for measuring barometric air pressure, but can also be used in other application fields. The high accuracy, high sensitivity and reliability features of the device makes it a perfect fit for advanced automotive applications as well as in industrial and consumer applications.
Summary of Features:
High accuracy pressure sensing (± 1.0 kPa)
Real 10-bit pressure resolution
Integrated temperature sensor
Real 10-bit temperature resolution
Power-down mode for reduced power consumption
Self diagnosis features
“Green” 8 pin SMD housing
Automotive qualified

Show
