Description

Product Details
The ADR45xx series of devices are high precision, low power, low noise voltage references, featuring ± 0.02% maximum initial error, excellent temperature stability and low output noise.
This family of voltage references employs a new core topology for high accuracy, while offering industry-leading temperature stability and noise performance. The devices’ low thermally induced output voltage hysteresis and low long-term output voltage drift also improve system accuracy over time and temperature variations.
A maximum operating current of 950 μA allows the device to be used in portable equipment.
ADR45xx series references are available in a wide range of output voltages, in an SOIC package, all of which are specified over the extended industrial temperature range of -40°C to +125 °C.
**APPLICATIONS**
Precision data acquisition systems
High-resolution data converters
High-precision measurement devices
Industrial instrumentation
Medical devices
Automotive battery monitoring
### Features and Benefits
Maximum temperature coefficient (TC):
2 ppm / °C
Output noise (0.1 – 10 Hz):
< 1.25 μVp-p @ 2.5 VOUT typ.
Initial output voltage error:
± 0.02% maximum
Input voltage range:
3 to 15 V
Operating temperature:
-40°C – +125 °C
Output current:
+10 mA source / -10 mA sink
Low quiescent current:
950 μA (max)

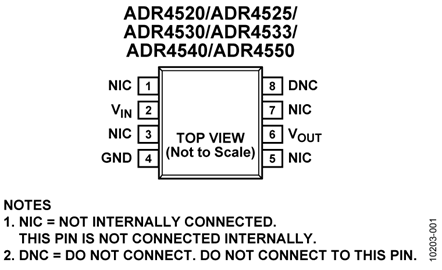

SOIC-8 package

Show

ADR4525 Specifications
