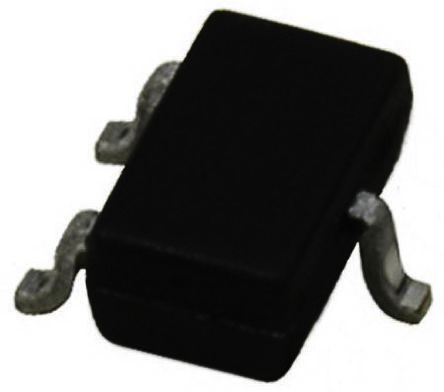

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 2N7002WT1G is a N-channel small signal Power MOSFET ideal for low power applications. It offers 60V drain source voltage and 310mA continuous drain current. It is suitable for low side load switch, level shift circuits, DC-to-DC converter, DSC and PDA applications.
- Low RDS (ON)
- Small footprint surface-mount package
- Halogen-free
- ESD Protected
- -55 to 150°C Operating junction temperature range
2N7002WT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SC-70-3 |
| Halogen Free Status | Halogen Free |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 1.6 Ω |
| Polarity | N-Channel |
| Power Dissipation | 330 mW |
| Threshold Voltage | 1 V |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 340 mA |
| Rise Time | 9 ns |
| Input Capacitance (Ciss) | 24.5pF @20V(Vds) |
| Input Power (Max) | 280 mW |
| Fall Time | 29 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 280 mW |
| Show | |
| Size-Length | 2.2 mm |
| Size-Width | 1.35 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
