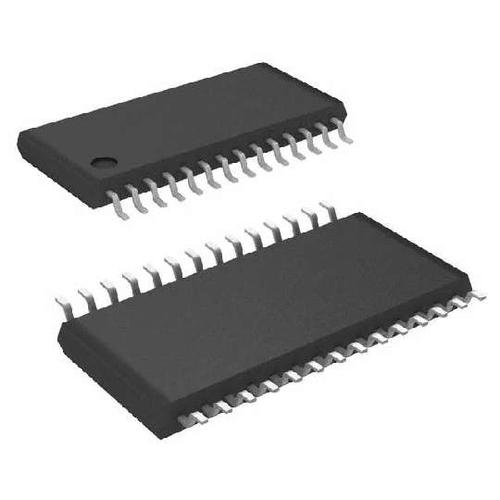

Image is for your reference only,please check specifications for details

ADS1248IPWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC110379
Category:
Analog to Digital, ADC IC
Package:
TSSOP-28
Datasheet:
Datasheet 3D Model
Description:
Analog to Digital Converter Precision 24Bit ADC with integrated Low Noise PGA (48nV at a Gain of 128) Single ADC Delta-Sigma 2KSPS 24Bit Serial 28Pin TSSOP T/R
Stock Locations:
Availability:
4,452 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 40.28

Updated at 03/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

ADS1248IPWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	TSSOP-28
Supply Voltage (DC)	2.70V (min)
Number of Channels	8 Channel
Number of Positions	28 Position
Number of Bits	24 Bit
Power Dissipation	2.3 mW
Sample Rate	2 ksps
Power Consumption	2.3 mW
Number of ADCs	1 ADC
Number of Inputs	4, 7 Input
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	4, 7 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.7 V
	Show
Size-Width	4.4 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
