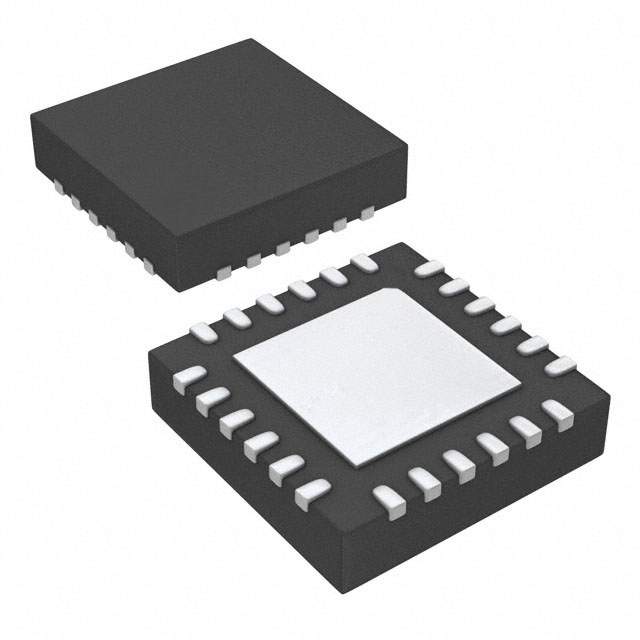

Image is for your reference only,please check specifications for details

TPS51116RGE - TI
Manufacturer:
TI
ManyChip's Part#:
MC171629000
Category:
Voltage Regulator
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
DC DC Cntrlr Single-OUT Sync Buck 3V to 28V Input 24Pin VQFN EP Tube
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The TPS51116 provides a complete power supply for DDR/SSTL-2, DDR2/SSTL-18, and DDR3 memory
systems. It integrates a synchronous buck controller with a 3-A sink/source tracking linear regulator and
buffered low noise reference.
FEATURES
• Synchronous Buck Controller (VDDQ)
– Wide-Input Voltage Range: 3.0-V to 28-V
– D−CAP™ Mode with 100-ns Load Step Response
– Current Mode Option Supports Ceramic Output Capacitors
– Supports Soft-Off in S4/S5 States
– Current Sensing from RDS(on) or Resistor
– 2.5-V (DDR), 1.8-V (DDR2), Adjustable to 1.5-V (DDR3) or Output Range 0.75-V to 3.0-V
– Equipped with Powergood, Overvoltage Protection and Undervoltage Protection
• 3-A LDO (VTT), Buffered Reference (VREF)
– Capable to Sink and Source 3 A
– LDO Input Available to Optimize Power Losses
– Requires only 20-µF Ceramic Output Capacitor
– Buffered Low Noise 10-mA VREF Output
– Accuracy 20 mV for both VREF and VTT
– Supports High-Z in S3 and Soft-Off in S4/S5
– Thermal Shutdown
APPLICATIONS
• DDR/DDR2/DDR3/LPDDR3 Memory Power Supplies
• SSTL-2 SSTL-18 and HSTL Termination
