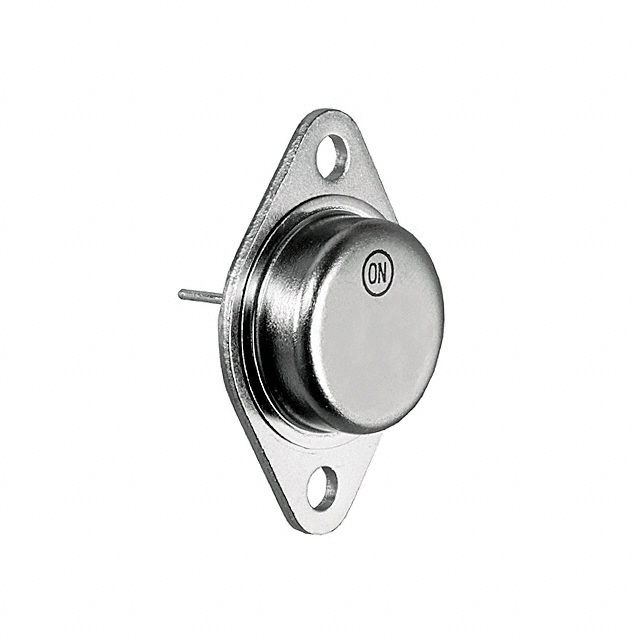

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Darlington Bipolar Power Transistor is designed for use as general purpose amplifiers, low frequency switching and motor control applications. The MJ11021(PNP) and MJ11022 (NPN) are complementary devices.
Features
---
|
Pb-Free Packages are Available

Show

MJ11022 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-3
Voltage Rating (DC)	250 V
Current Rating	15.0 A
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	250 V
Continuous Collector Current	15A
hFE Min	400 @10A, 5V
hFE Max	15000
Input Power (Max)	175 W
	Show
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tray
Minimum Packing Quantity	100
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
