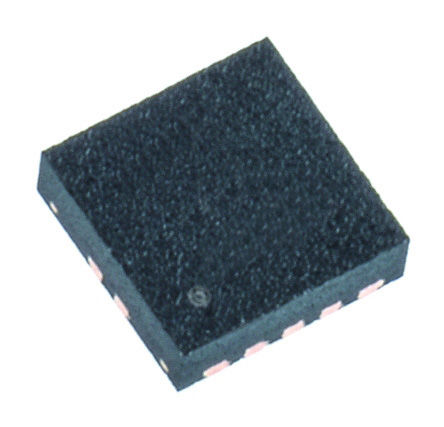

INA300AIDSQT - TI
Manufacturer:
TI
ManyChip's Part#:
MC8216984
Category:
Comparator, Analog Comparator IC
Package:
WFDFN-10
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS INA300AIDSQT Analogue Comparator, Rail to Rail, High Speed, 1, 100µs, 2.7V to 5.5V, SON, 10Pins
Stock Locations:
Availability:
232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.87

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The INA300AIDSQT is an overcurrent-protection Current-Sense Comparator designed for overcurrent protection applications. The device detects overcurrent by measuring the voltage developed across a shunt resistor and comparing that voltage to the threshold voltage input level. The device measures this differential voltage signal on common-mode voltages that can vary from 0 up to 36V, independent of the supply voltage. The device features an adjustable threshold range that is set using a single external limit-setting resistor. A selectable hysteresis feature enables adjustable operation of the comparator to accommodate the wide input signal range of 0 to 250mV. An open-drain alert output on the device can be configured to operate in either a transparent mode where the output status follows the input state or in a latched mode where the alert output is cleared when the latch is cleared.
Programmable threshold - Adjust using single resistor
±500µV Maximum offset voltage
0.5µV/°C Maximum offset voltage drift
35µA Maximum active quiescent current
Selectable disable mode
3.5µA Maximum disabled quiescent current
500nA Maximum disabled input bias current

Show

INA300AIDSQT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	WFDFN-10
Output Voltage	36 V
Number of Positions	10 Position
Power Dissipation	250 W
Common Mode Rejection Ratio	120 dB
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
Supply Voltage	2.7V ~ 5.5V
Input Voltage	2.7V ~ 5.5V
	Show
Size-Length	2.1 mm
Size-Width	2.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
