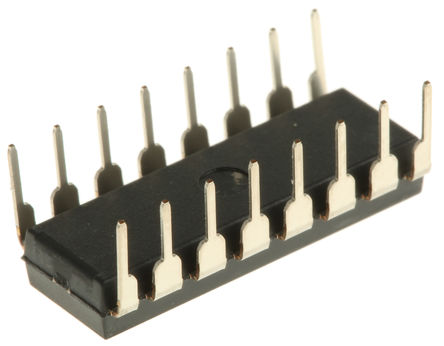

INA2126PA - TI
Manufacturer:
TI
ManyChip's Part#:
MC77550733
Category:
Instrumentation Amplifier IC
Package:
PDIP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS INA2126PA Instrument Amplifier, 2, 500V, 0.4V/ s, 200kHz, 1.35V to 18V, DIP
Stock Locations:
Availability:
658 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.17

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The INA2126PA is a MicroPower precision Instrumentation Amplifier for accurate, low noise differential-signal acquisition. Their two op-amp design provides excellent performance with low quiescent current (175µA/channel). Combined with a wide operating voltage range of ±1.35 to ±18V, makes the INAx126 ideal for portable instrumentation and data acquisition systems. Gain can be set from 5 to 10000V/V with a single external resistor. Laser-trimmed input circuitry provides low offset voltage (250µV maximum), low offset voltage drift (3µV/°C maximum) and excellent common-mode rejection.
35nV/√Hz Low noise
25nA Maximum low input bias current
Green product and no Sb/Br

Show

INA2126PA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	15.0 V
Supply Current	175 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	90 dB
Quiescent Current	175 µA
Bandwidth	200 kHz
Slew Rate	400 mV/μs
Input Offset Voltage	500 µV
Input Bias Current	10 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
3dB Bandwidth	200 kHz
Gain Bandwidth	74 dB
Minimum CMRR Range	74 dB
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
